JUYI N Channel Enhancement Mode Power MOSFET 70V/90A Low On Resistance Fast Switching

  • 1
  • 2
  • 3

Brand Name : JUYI

Model Number : JY09M TO 252

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T,Paypal

Supply Ability : 1000sets/day

Delivery Time : 5-8 working days

Packaging Details : PE bag+ carton

Contact Now

JUYI N Channel Enhancement Mode Power MOSFET 70V/90A, Low On-Resistance, Fast Switching, Wide Applications

GENERAL DESCRIPTION
The JY09M utilizes the latest trench processing techniques to achieve the high cell density and reduces the on-resistance with low gate charge. These features combine to make this design an extremely efficient and reliable device for use in power switching application and a wide variety of other applications.
FEATURES
● 70V/90A, RDS(ON) =6.2mΩ@VGS=10V(typical)
● Fast switching and reverse body recovery
● Fully characterized avalanche voltage and current
● Excellent package for good heat dissipation
APPLICATIONS
● Power Switching application
● Hard switched and high frequency circuits
● Uninterruptible power supply

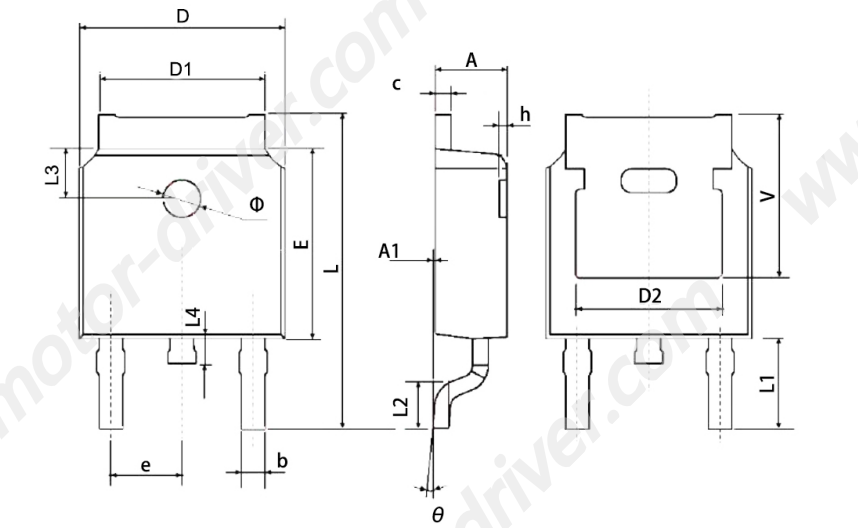

PIN DESCRIPTION
JUYI N Channel Enhancement Mode Power MOSFET 70V/90A Low On Resistance Fast Switching
Absolute Maximum Ratings(Tc=25ºC Unless Otherwise Noted)
JUYI N Channel Enhancement Mode Power MOSFET 70V/90A Low On Resistance Fast Switching
Electrical Characteristics(Ta=25ºC Unless Otherwise Noted)
JUYI N Channel Enhancement Mode Power MOSFET 70V/90A Low On Resistance Fast Switching

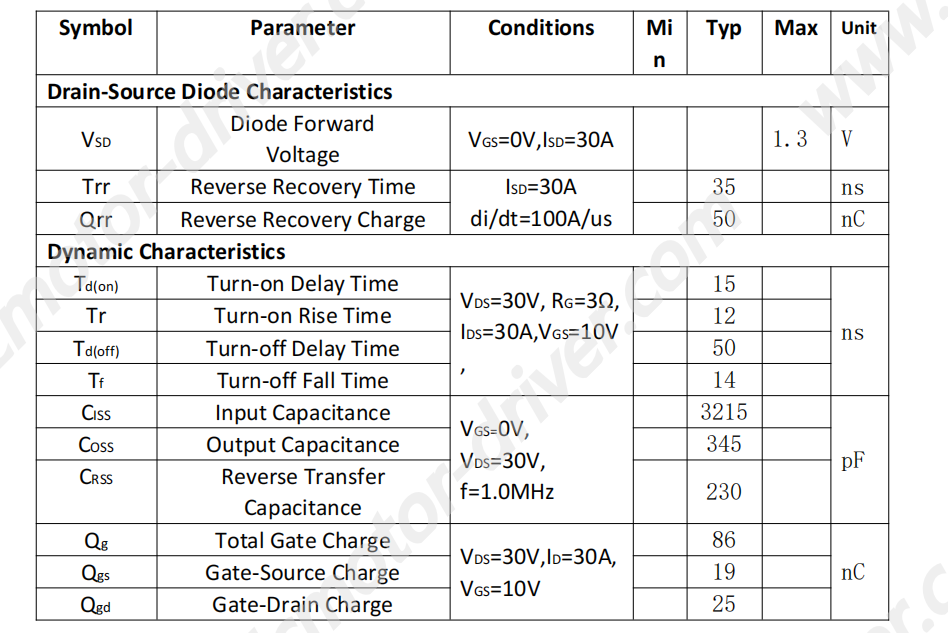

Electrical Characteristics(Ta=25ºC Unless Otherwise Noted)
JUYI N Channel Enhancement Mode Power MOSFET 70V/90A Low On Resistance Fast Switching

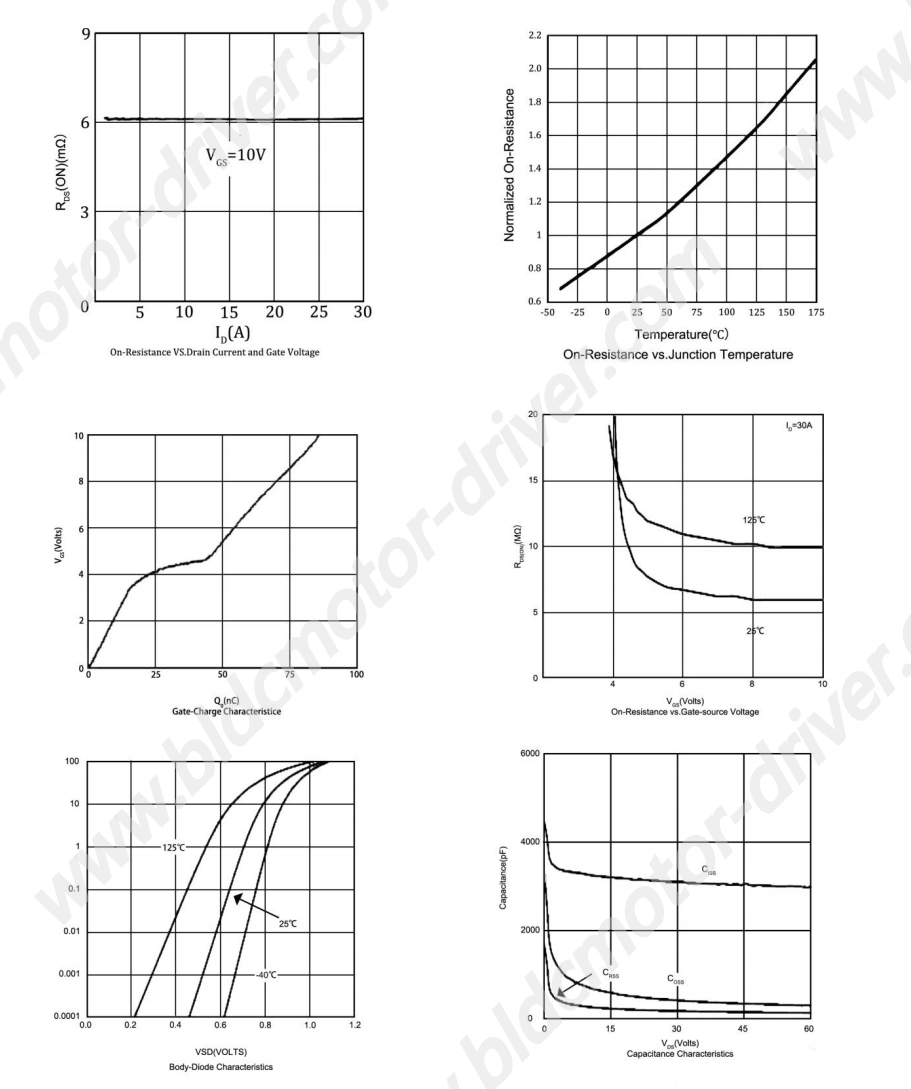

Typical electrical and thermal characteristics
JUYI N Channel Enhancement Mode Power MOSFET 70V/90A Low On Resistance Fast Switching
JUYI N Channel Enhancement Mode Power MOSFET 70V/90A Low On Resistance Fast Switching
JUYI N Channel Enhancement Mode Power MOSFET 70V/90A Low On Resistance Fast Switching
